Hardware

Introduction

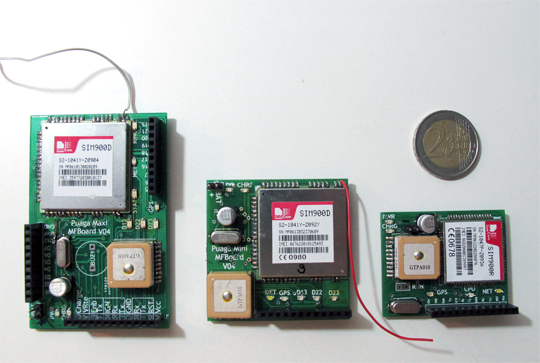

There are currently three different mfNode devices, two of them for general use and one designed specifically to use as trap alerts. For each device, guides and libraries are provided to get you up and running fast.

Sensor Ports

Each device has multiple ports so you can easily attach different sensors for different uses and transmit data from a remote location using MQTT via TCP/IP or standard text messages or by using a serial connection.

Common Features

Every mfNode device has the following features:

• LiPo charger
• ATMega644P, 8-bit Microprocessor
• 66 Channel GPS receiver with Patch Antenna
• GSM Module with EDGE data capability
• I2C , SPI, 10bit A/D, UART I/F and Digital Input ports
• Solder points for devices/modules
• Very Small form factor for machine to machine projects
