mfNode Trap

Introduction

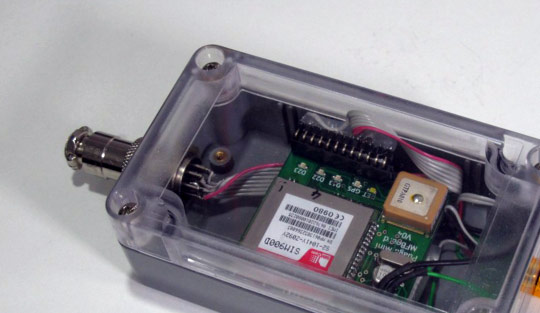

This purpose-built device is is designed to send a text message to a predefined GSM number when the magnet removed from “marked” area. An activation key is also provided to avoid alarms when in test mode.

Activation and Operation

When the magnet from the market area is removed, the device turns itself on, connects to the GSM network and send a text message to a predefined GSM number to alert the operator.

Features

• Water-resistive enclosing
• 3 status lights
• LiPo charger
• ATMega644P, 8-bit Microprocessor
• 66 Channel GPS receiver with Patch Antenna
• GSM Module with EDGE data capability
• I2C , SPI, 10bit A/D, UART I/F and Digital Input ports
• Solder points for devices/modules
• Very Small form factor for machine to machine projects
